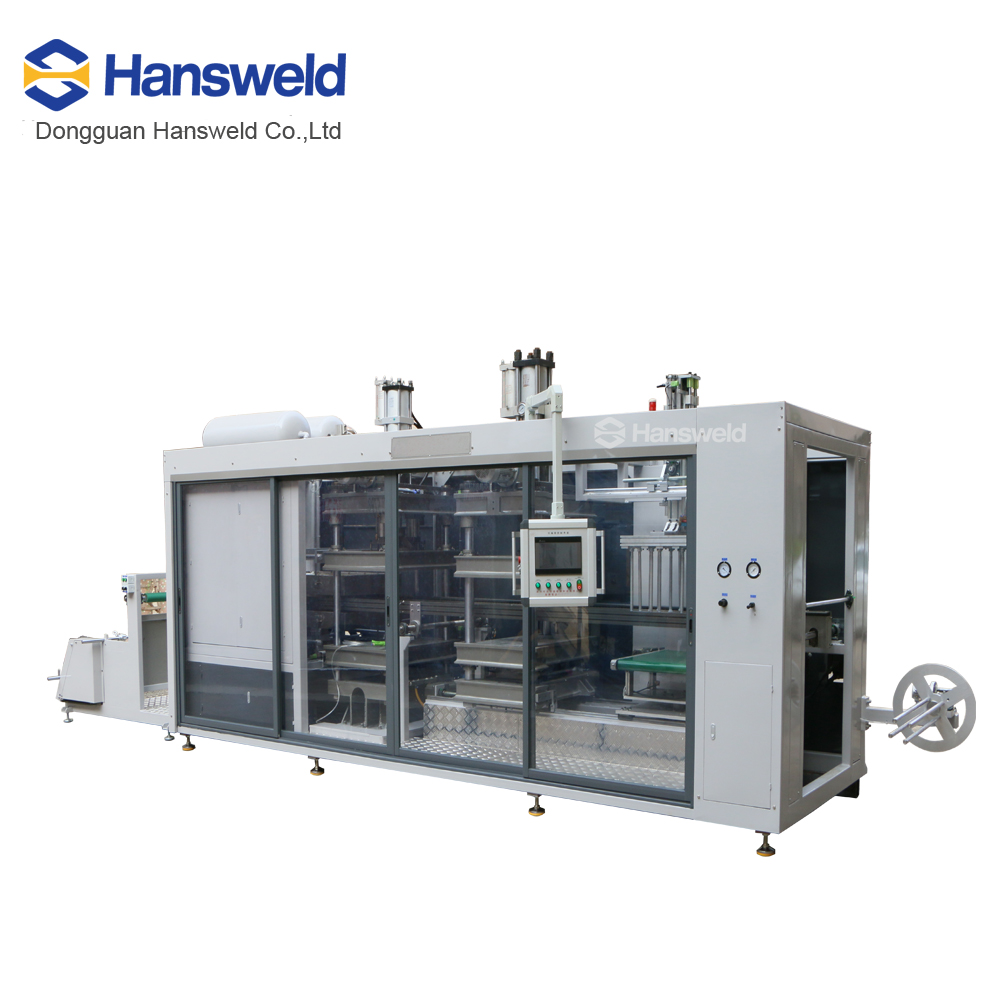

HSD-720<br> PET PVC Blister Vacuum Forming Machine

Mainly applicable to:

PVC\PE\PS\PP\PET\PETG\GAG and other types of plastic sheets can be molded into various shapes of the cover box, widely used in hardware, toys, stationery tableware, tools, electronics, drugs and other packaging or plastic thin-wall products molding; PVC/PETG/GAG blister packaging (blister molding for packaging of daily necessities, toys, hardware tools, electronic products, etc.); PP/PET/PETG/PVC and other food packaging trays and electronic product packaging trays PVC/TPU soft plastic products blister molding.

Automatic blister molding machine product features

1. Reasonable line design, thick material, rigorous assembly, 3 times before the factory quality inspection;2. Automatic push furnace, automatic pull material, no manual operation, refueling can be; 3. Voltage type digital temperature control, respectively control 25 infrared ceramic heating bricks; 4. The machine uses infrared ceramic heating brick, heating quickly, heating evenly; 5.PLC man-machine interface, simple parameter setting, employees can be on the job without special training, and can customize the automation needs of the assembly line.

Specifications	HSD-720
Forming Length	300-1220mm/11-48inch
Forming Width	410-710mm/16-28inch
Forming Height	200mm/7inch
Frequency	220-600 beats per hour
Vacuum Pump(Motor)	3KW 4HP
Control form	PLC Frequency control PLC frequency control
Heat furnace control	60 independent control. 60 independent control
Bottom die mximum stroke	320mm
Power	AC380V/220V 50HZ
Actual power consumption	12-20KW
Dimensions	L7440mm x W1850mm x H2600
Weight	About 4200KG
Need to match Air pump	15HP
